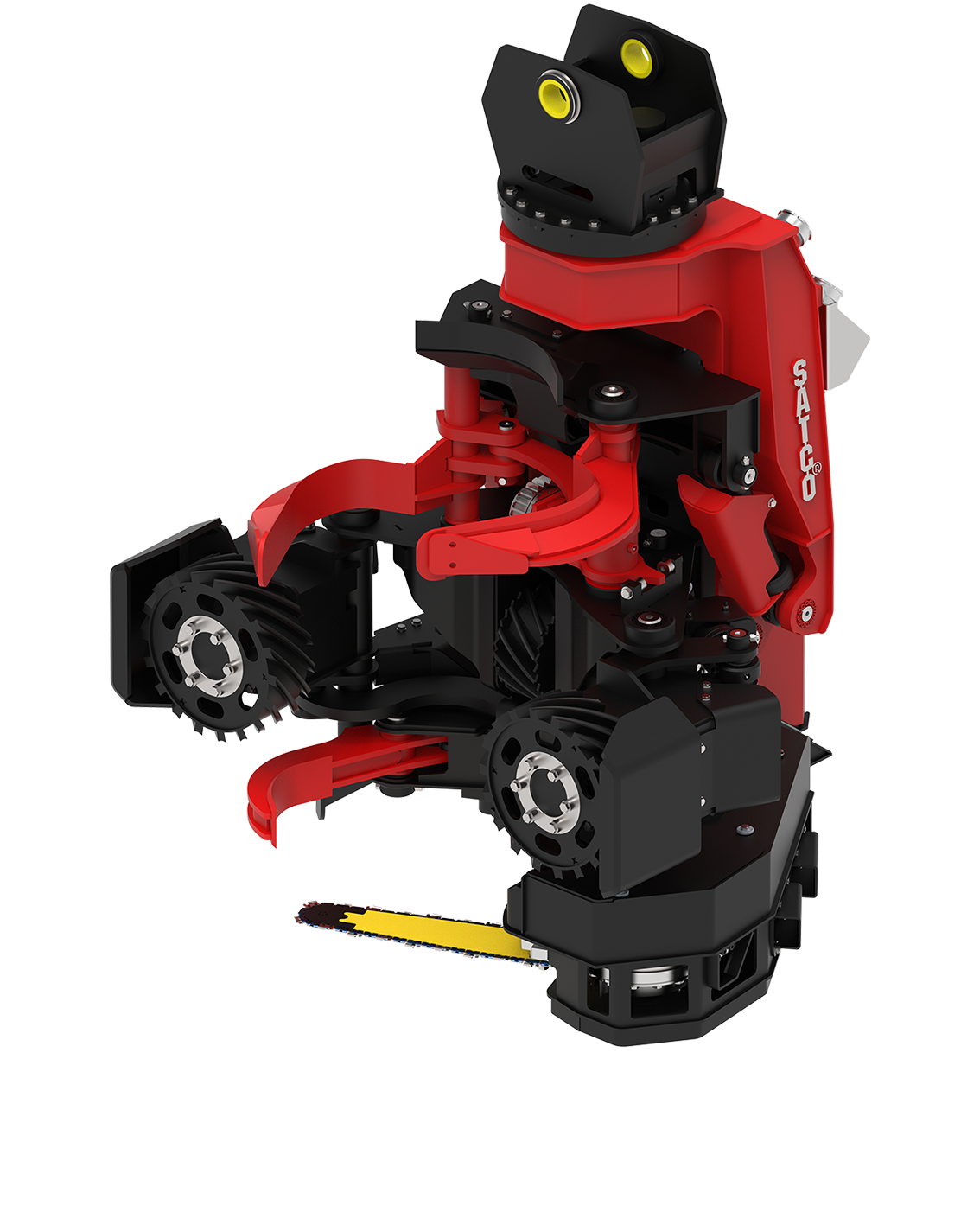

SATCO® SAT316 3 SERIES, 3 ROLLER, 16INCH PROCESSING HEAD

Key Features:

  • Twin tilt cylinders
  • 360° continuous rotation
  • 6cm diameter (2.25”) Drive Arm top, Delimb and Hanger Pins for strength & long life
  • Long life solenoids
  • Rexroth valve rated at 420bar (6100psi) and 200lpm (52.8gpm) (US) continuous per section
  • Reliable components
  • All pivot pins are retained using the SATCO® "DEAD-LOCK" pin retention system which adds strength to the chassis with no extra weight
  • The ability to customise from the build options to suit your needs
  • Large 20cm (8”) diameter length measuring wheel
  • SATCO® Auto chain tensioner
  • Harvest Lock
  • Find End with Shutter that protects Find End when not in use

The SAT316 is a 3 Series, 3 Roller, 16” Processing head. There are options to customise and refine your SATCO® SAT316 Processor to suit your application even further.

Further options include:

  • Hardwood kit
  • Alpine or thumbnail softwood rollers
  • Colour marking

Measuring Options:

  • SATCO® Plus 1
  • DASA5 PRIO
  • DASA5 Optimising
