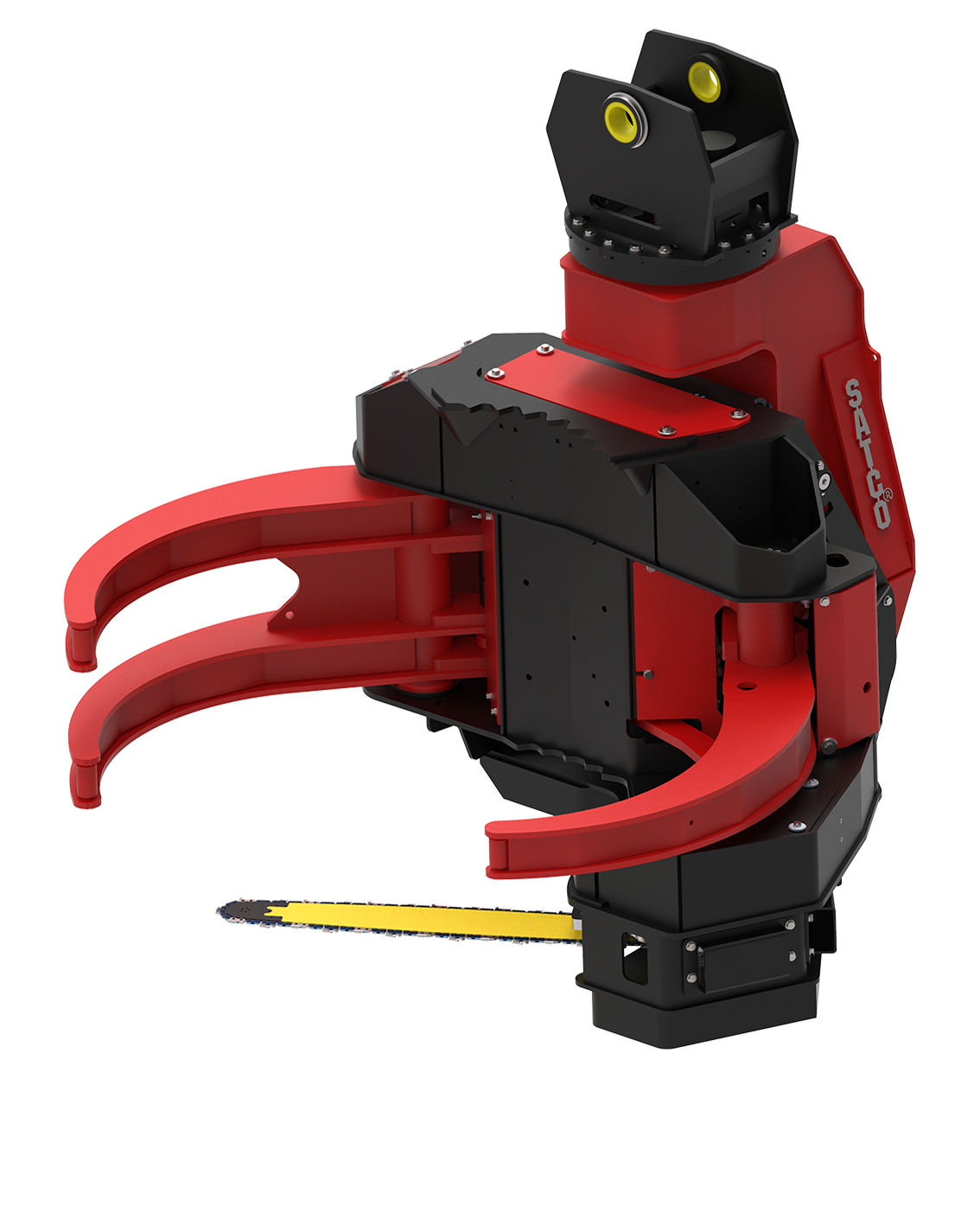

SATCO® SAT630 DIRECTIONAL FELLING HEAD & LOADING GRAPPLE

Key Features:

  • 8cm (3”) Drive Arm Pins for strength & long life
  • Extra ‘dead length’ in cylinders for superior seal life
  • Oil Impregnated Bushes for less wear
  • Well protected hydraulic system
  • Bar release valve for saw chain replacement or tensioning
  • Fully Hydraulic - no electrical system required down in grapple
  • Removable covers for easy servicing
  • Unique SATCO®"HOSE THROUGH CENTRE" system eliminates hose twisting & snagging
  • Continuous Rotation - 360°
  • Heavy duty saw with shear bolts to prevent bending saw swing arm
  • Auto saw tensioning
  • Optional: Saw bar out light, Harvester ready

The SAT630 is a 30 Inch Directional Felling Head & Loading Grapple which has been proven in all parts of the world. It is a very versatile unit enabling operators to fall, bunch, stack and shovel whole stems. The 360 degree continuous rotation allows falling in any possible direction in relation to the base machine.

The very first SAT630 was built in 1999 and is still working today with more than 40,000 hours of loyal service, proving itself to be the most reliable and efficient saw grapple in the world today. SATCO® has units extensively servicing New Zealand, Australia, the United States, Brazil, Chile, Asia, Africa and Canada.

The unique SATCO® ‘Hose Through Centre’ connection to the base machine allows the hoses to travel through the centre line of the attaching pins. This prevents the hoses over–bending, causing premature failure and protects the hoses from damage, especially in tree felling applications.

The SAT630 Felling Grapple saw unit is supported by a large 30cm (12”) diameter slew bearing making it a very robust unit, especially when falling. The saw is a heavy duty auto chain tensioning saw with a 43” bar and a 3/4” chain. SATCO® also use a unique locking system for the saw sprocket to prevent broken drive shaft keys and damaged saw motor shafts.

The SAT630 has no electrical system down to the felling grapple which makes it easy to maintain and allows the operator to quickly change to a loading grapple with ease.

A Harvester Ready option makes installation on harvester ready base easier and can be run in conjunction with a harvester.

360 degree continuous rotation makes falling large diameter trees easy, a front cut can be put into the tree without having to reposition the base machine.

The SAT630 is constructed using high grade materials and manufactured using the best robotic welding wire for a far superior weld.

Weighing in at 2000kgs (4400lbs), and requiring 200lpm (52.8gpm) (US) at 280bar (4000psi) the SAT630 felling grapple can be attached onto any base machine in the range of 20 – 40 tonne. As well as running the SAT630 on larger carriers, the SAT630 can also be run on a small carrier as the horsepower requirement is minimal compared to running a fixed disc saw head. These factors all amount to less base machine stress and great fuel efficiency. This enables you to increase your production while bringing down running costs.

The SAT630 Directional Felling Grapple is the most versatile saw head on the market, its résumé includes:

  • Fall and bunch for ground based crews
  • Fall and bunch for a swing yarder grapple
  • Pulling stems through a static delimber
  • Windblown sites – Safe for handling fallen or 'hung up' stems
  • Truck loading
  • Woodlots
  • Sorting and stacking stems
  • Steep slope tethering
  • Run with SATCO® ‘Live Heal’
